Materials

PP(polypropylene,PP) :
Equipped with acid, chemical resistant, impact-resistant and heat resistance (about 20 ℃ ~ 120 ℃)....etc.  Tasteless, odorless, nontoxic, lightweight thermoplastic resin, excellent mechanical properties, integrated excellent performance, easy molding processing.

PE(polyethylene, PE) :
Divided into high-density polyethylene (HDPE), low-density polyethylene (LDPE), and polyethylene foam. PE has acid, alkaline resistance and good electrical insulation properties as well. Electrolytic corrosion will not be affected. The HDPE & LDPE both have higher melting point, hardness, and more resistant to the erosion of corrosive liquids.

PVC(Polyvinylchloride, PVC) :
SR-PVC semi-rigid PVC & Non-Migration PVC; not easily be acid, alkali corrosion, and heat resistance. The most important feature is the flame, so it is widely used for fire protection applications.

TPU(Polyurethane) :
PU has a very good resistance to pressure, vibration, corrosion, abrasion resistance, weather resistance, and winding performance. PU is a resin not a plastic. There are two types of PU; Polyester & Polyether (hydrolysis resistance & antifungal).


: Sort Of

: Good

: Excellent

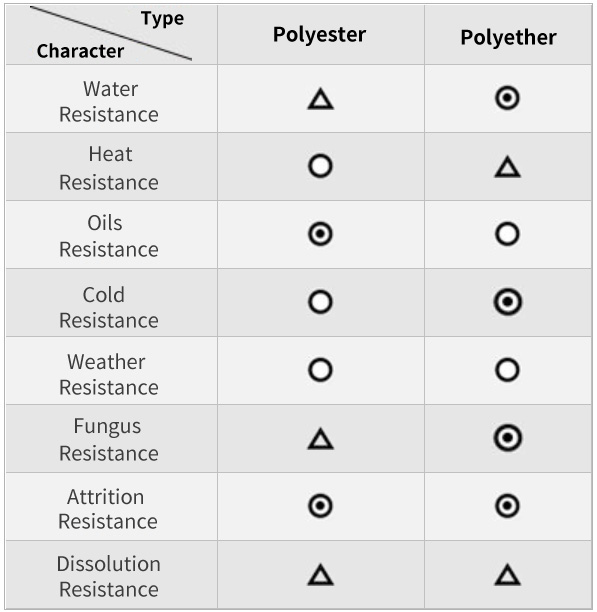

Polyester Polyether
Water
Resistance
Heat
Resistance
Oils
Resistance
Cold
Resistance
Weather
Resistance
Fungus
Resistance
Attrition
Resistance
Dissolution
Resistance

TPE(Thermoplastic Polyester elastomer) :
Has excellent electrical characteristics, toughness, and strength. It is strongly resistant to oils, fuels, tearing, and many other chemicals. TPEE has rubber elasticity and strength of engineering plastics.

TPR(Thermoplastic Rubber,TPR):
Thermoplastic rubber is similar to the traditional vulcanized rubber with strength and resilience, good resistance to cold temperature, good chemical resistance (acids, alkalis, and salts), non-toxic, with a soft touch and adjustable properties and hardness.

[ Conductor]
Copper (Bare Copper)
Tinned Copper (Tin Plated Copper)
Silvered Copper (Silver Plated Copper)
LITZ Wire (Enamelled Wire,Magnet Wire)
Tinsel Wire
etc.......

[Shield/Filler]
Paper
Cotton
Mylar
(AL)Aluminum Mylar Foil
Nylon
Foam Polyesterlene Tape
Kevlar
Spiral
Braid
Drain Wire;Earth Wire
etc.......

[ Insulation ]
Hytrel TPEE
Thermoplastic Rubber TPR
Semi-Rigid Polyvinyl SR-PVC
No-Migration Polyvinyl NM-PVC
Foam-Skin Polyethylene PE Foam
Polyethylene PE
polyvinyl chloride PVC
Polyurethane TPU
Polypropylene PP
etc.......
